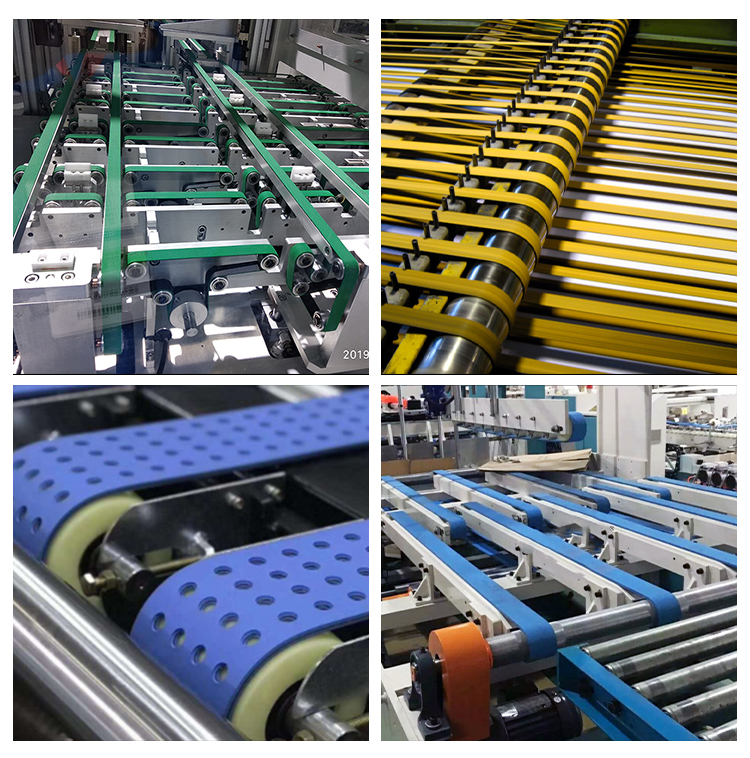

Nylon sheet base band is a very widely used in the industrial belt of a plane transmission belt category, nylon sheet base band is nylon sheet as the tension layer and the surface is covered with rubber, cowhide, fiber cloth plane transmission belt (also known as flat belt), has: strong tension, flexural resistance, high efficiency, low noise, fatigue resistance, good wear resistance, long service life and other advantages. Application: Suitable for compact transmission mechanism, high speed and high speed ratio. Such as: cigarette, cigarette machine, papermaking, printing, spinning machinery, HVAC equipment, metal equipment, automatic selling equipment and military industry. After adding anti-static properties, it is also used in the electronics industry substrate line, SMT equipment, circuit board transportation, etc.
| Product name |
Yellow and green substrate |
| Product type |
Sheet base band/seamless ring base band/rubber nylon base band/cowhide nylon base band |
| Substrate |
surface covered with rubber, cowhide, fiber cloth; Divided into rubber nylon sheet base band and cowhide nylon sheet base band. |
| Product features |
wear-resisting, winding resistance, strong tension, long service life. |
| Product material |
nylon/rubber/cowhide/industrial fiber cloth |
| Width range |
0mm-500mm(size can be special processing according to customer requirements) |
| Length range |
arbitrary length according to customer requirements |
| Product type |
yellow-green tablet base band |
| Product color |
yellow, green |
| Connection mode |
Seamless tape |
Product Description
High efficiency double-sided drive belt, it is suitable for high-speed tangential transmission and power transmission in the textile industry, such as rotor spinning machine, twisting machine, drawing machine, fancy twisting machine, also often do carding machine, roving machine, drawing machine, drawing machine, paper mill and other industries of equipment power belt.
| TYPE |
THicness |
kind of drive |
Min. wheel diameter |
1% ductility |
Tension strength |
Operating temp. |
Characteristics |
| (mm) |
(mm) |
(N/mm） |
(N/mm) |
(℃) |
| A_001C |
1.4 |
Double-sided transmission |
20 |
2 |
80 |
-20~ +100 |
Anti-static |
| A_002C |
1.5 |
Double-sided transmission |
35 |
3.5 |
140 |
-20~ +100 |
Anti-static |
| A_003C |
1.7 |
Double-sided transmission |
50 |
5 |
200 |
-20~ +100 |
Anti-static |
| A_004C |
2 |
Double-sided transmission |
75 |
7.5 |
300 |
-20~ +100 |
Anti-static |
| A_005C |
2.1 |
Double-sided transmission |
50 |
5 |
200 |
-20~ +100 |
Anti-static |
| A_006C |
2.3 |
Double-sided transmission |
75 |
7.5 |
300 |
-20~ +100 |
Anti-static |
| A_007C |
3.2 |
Double-sided transmission |
75 |
7.5 |
300 |
-20~ +100 |
Anti-static |
| A_008C |
2.4 |
Double-sided transmission |
85 |
8.5 |
340 |
-20~ +100 |
Anti-static |
| A_009C |
2.4 |
Double-sided transmission |
100 |
10 |
400 |
-20~ +100 |
Anti-static |
| A_010C |
2.6 |
Double-sided transmission |
100 |
10 |
400 |
-20~ +100 |
Anti-static |
| A_011C |
3 |
Double-sided transmission |
100 |
10 |
400 |
-20~ +100 |
Anti-static |
| A_012C |
3.4 |
Double-sided transmission |
100 |
10 |
400 |
-20~ +100 |
Anti-static |
| A_013C |
2.6 |
Double-sided transmission |
115 |
11.5 |
460 |
-20~ +100 |
Anti-static |
| A_014C |
2.8 |
Double-sided transmission |
115 |
11.5 |
460 |
-20~ +100 |
Anti-static |
| A_015C |
3 |
Double-sided transmission |
115 |
11.5 |
460 |
-20~ +100 |
Anti-static |
| A_016C |
2.6 |
Double-sided transmission |
125 |
12.5 |
500 |
-20~ +100 |
Anti-static |
| A_017C |
2.8 |
Double-sided transmission |
125 |
12.5 |
500 |
-20~ +100 |
Anti-static |
| A_018C |
3 |
Double-sided transmission |
125 |
12.5 |
500 |
-20~ +100 |
Anti-static |
| A_019C |
3.1 |
Double-sided transmission |
150 |
15 |
600 |
-20~ +100 |
Anti-static |
| A_020C |
3.3 |
Double-sided transmission |
150 |
15 |
600 |
-20~ +100 |
Anti-static |
| A_021C |
3.9 |
Double-sided transmission |
150 |
15 |
600 |
-20~ +100 |
Anti-static |
| A_022C |
3.2 |
Double-sided transmission |
175 |
17.5 |
700 |
-20~ +100 |
Anti-static |
| A_023C |
3.5 |
Double-sided transmission |
175 |
17.5 |
700 |
-20~ +100 |
Anti-static |
| A_024C |
3.8 |
Double-sided transmission |
175 |
17.5 |
700 |
-20~ +100 |
Anti-static |
| A_025C |
3.6 |
Double-sided transmission |
200 |
20 |
800 |
-20~ +100 |
Anti-static |
Contact us to get more detail

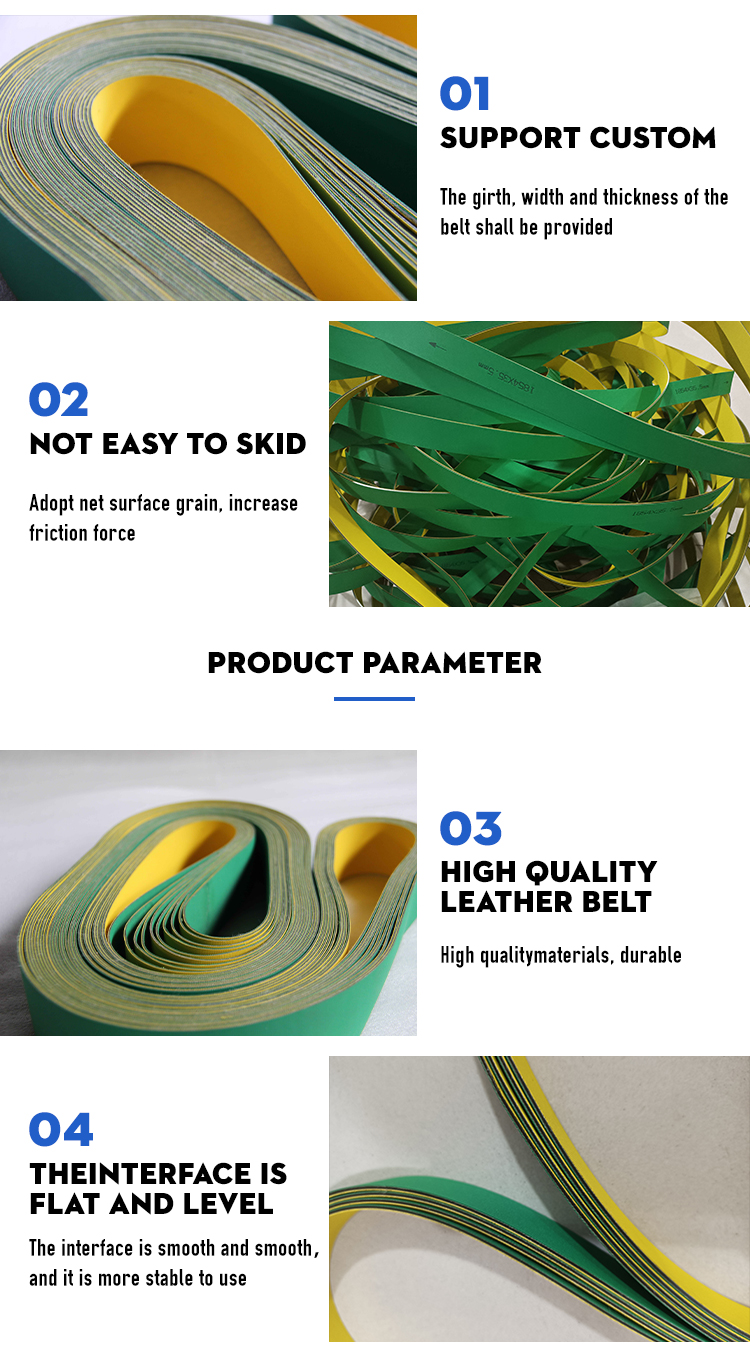

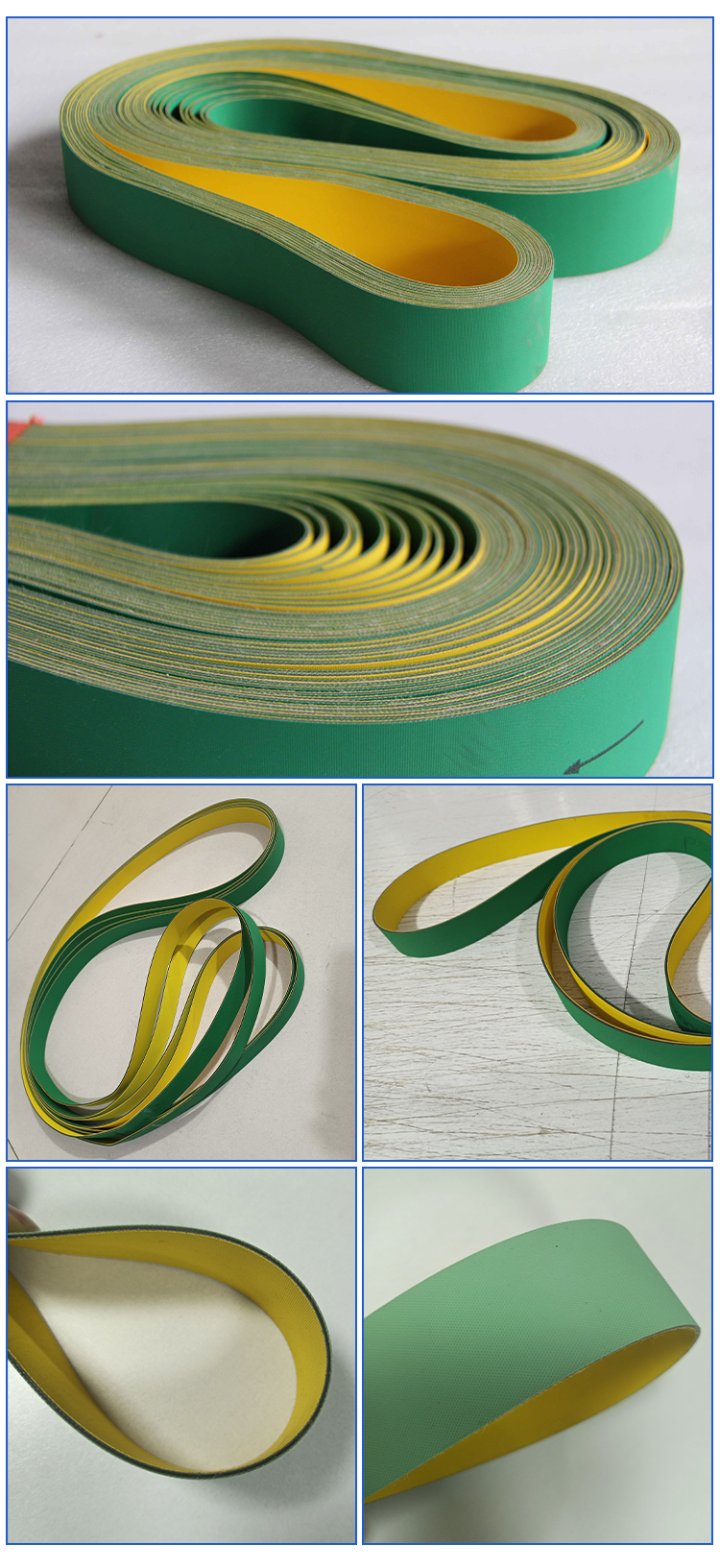

Details pictures
